After Later Ornate Criminal.

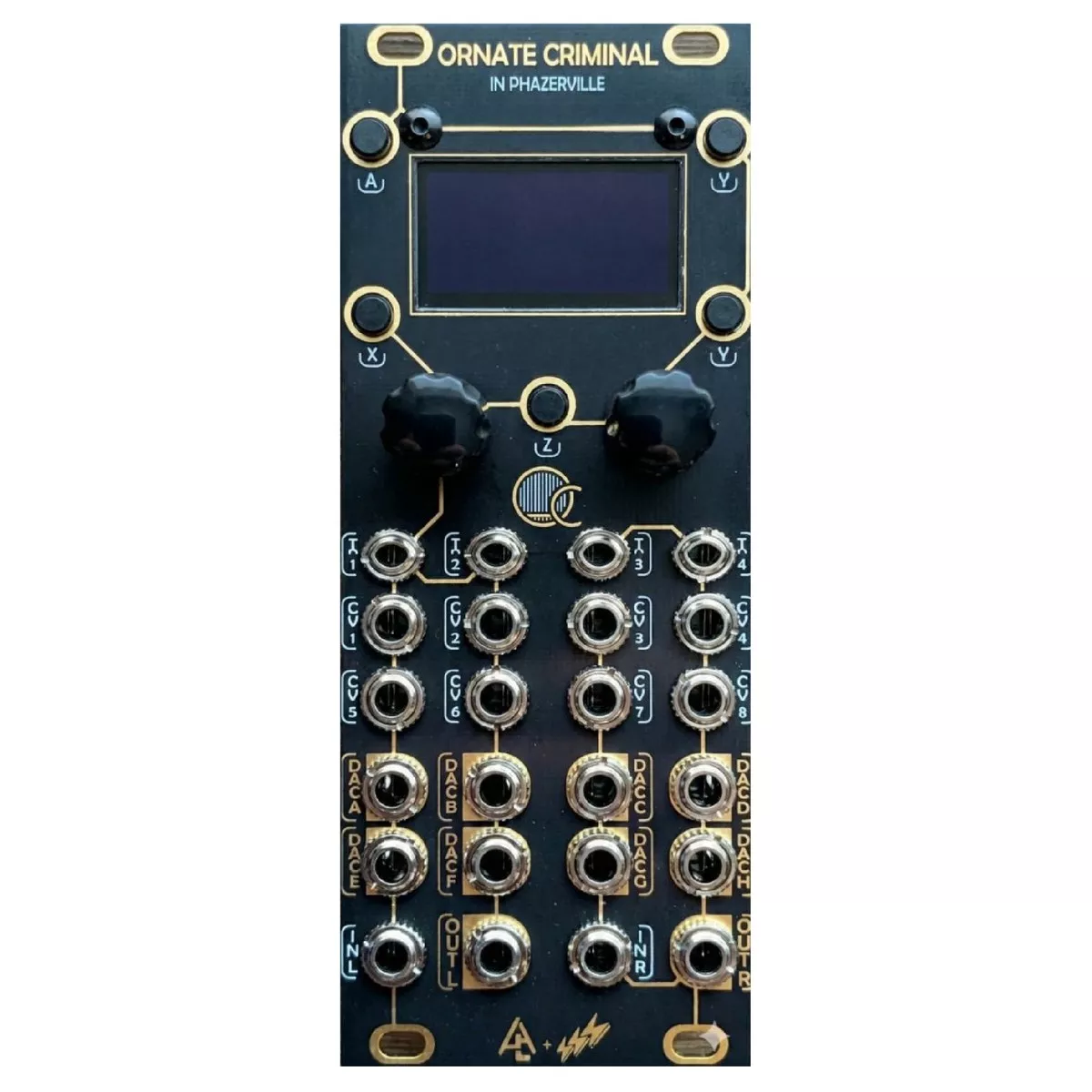

Ornate Criminal is a high-performance Eurorack module based on the Ornament & Crime platform, rebuilt around a Teensy 4.1 processor and running the Phazerville firmware. It offers extensive CV, trigger, and audio I/O in a compact 10hp format, making it a powerful modulation, sequencing, and utility hub for modern modular systems.
Key Features
-
Teensy 4.1 architecture: Based on the PJRC reference design for increased processing power
-
Phazerville firmware: Advanced multi-app firmware built on the original Ornament & Crime platform
-
8 CV Outputs: High-resolution control voltage generation
-
8 CV Inputs: Extensive modulation and control routing
-
4 Trigger Inputs: Dedicated trigger and gate handling
-
Stereo Audio In & Out: Supports audio-rate processing and DSP-based apps
-
Expansion-ready: Headers for future MIDI expander (3.5mm MIDI I/O + USB host/device)
-
QWIIC (I2C) connector: For external hardware experimentation and development
Technical Specifications
-
Width: 10hp
-
Power Consumption:
-
+12V: 120mA
-
-12V: 20mA
-
-
Power Connector: Keyed (module-side orientation is reversible)
Important Notes
Early small-batch units have the USB host circuit limited to 4.2V. A future hardware revision will address this, but upgrading will require soldering 0603 SMD components.
Whats Included
-
Ornate Criminal Eurorack module
-
1-year manufacturer warranty
