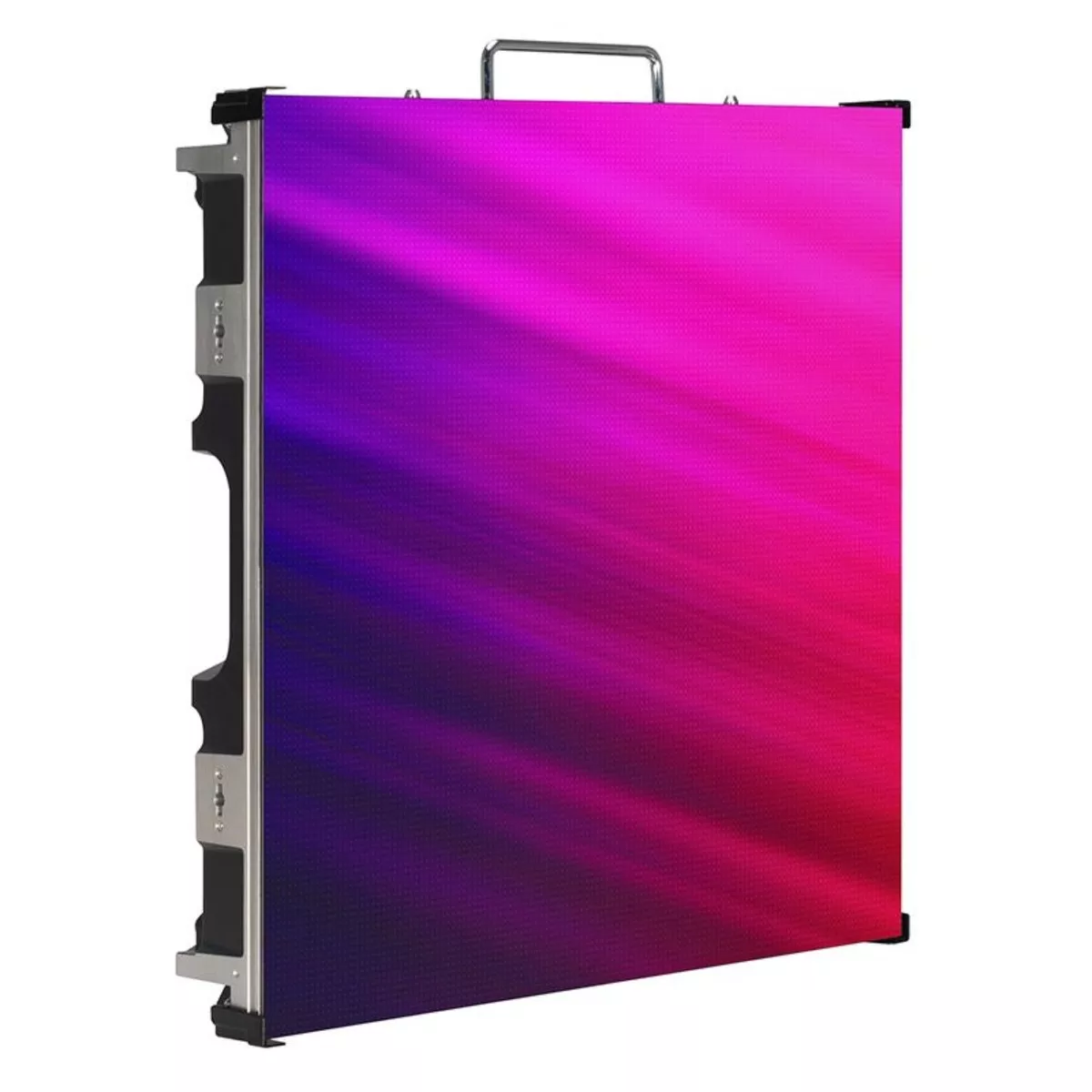

American DJ EVS3 LED Video Panel.
The ADJ Lighting EVS3 LED Video panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED. Each panel has four individual mini modules and is front and rear serviceable. Up to 8 EVS3 video panels fit inside the VSFC8 flight case. Hang up to 20 EVS3’s vertically with the VSRB1 rigging bar.
SPECIFICATIONS:
Pixel Pitch: 3.91mm (0.15) LED Configuration: 3-in-1 SMD2121 LED Pixel Density: 128×128; 65536 per square meter Size :19.68 x 19.68 x 2.96 / 500 x 500 x 75mm Module Quantity: 4 Weight: 16.5 lbs. / 7.5kg.
FEATURES: Memory on Module (MOM) Corner Protectors to protect the corners of the EVS3 during transport, set-up and teardown Front and rear serviceable: 4 easy to replace video modules on each panel
MECHANICAL RATINGS: Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS: Brightness: 800 NITS View Angle: Horizontal 160/Vertical 140 @ 9.75 ft. (3m) Gray Scale: 14-bit Display Color: 256 Brightness Adjustment: 0~100% 100 Levels Contrast ratio: 5000:1 Processing: 14-bit
POWER SUPPLY: Operation Power: 100~240V 50-60Hz Max. Power Consumption: 120W/per panel Ave. Power Consumption: 48W/per panel Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
CONTROL SYSTEM: Control Mode: Nova Star Synchronous System with Control via DVI Frame Update Frequency: 50-75Hz Scan Mode: 1/16 Refresh Rate: 3840Hz Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI Control Distance: Ethernet Cable 120m Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280 Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL: Operating Temp / Humidity: Fahrenheit: -4 + 104 / Celsius: -20 + 40/ 10-90% (No Condensation) Operating Life / MTBF: 50,000 Hours / 5,000 Hours Protection Level: IP20 (Front and Back) Out of Control Rate: <0.02%
VIDEO WALL SYSTEMS:EVS3 video wall systems include: video panels, video processor, power cables, data cables, rigging bars and video software (computer sold separately).
EVS3-4X2: 8 Panel (4×2) Video Wall SystemEVS3-5X3: 15 Panel (5×3) Video Wall SystemEVS3-7X4: 28 Panel (5×3) Video Wall System
OPTIONAL ACCESSORIES: VSFC8 (VS8100): Flight CaseFits 8 EVS3 Video Panels VSRB1 (VS1100): Rigging BarHang up to 20 EVS3 Video Panels vertically VSMRT (VSM111): Module Removal tool – Magnetically assists the tech in removing modules from the front side when servicing. VSRQR (VSR210): Quick Rig – Attaches and locks on to the rear of EVS3 so it can be fastened to a 2″ pipe or truss VS1RSB (VS1126) Rear Support Bracket for EVS3 VSSCSB VSS225): Single Column Support Base VSGSB (VSG100): Ground Support Base VSGSLT (VSG132): Ground Support Ladder Truss VSGSCSB (VSG155): Clamp Support Bar EVSVAC (EVSVAC): Vacuum Tool to Remove Modules Novastar VX4S: Video Processor Novastar MCTRL-300: Video Processor Novastar Nova Pro HD: Video Processor Arkaos Media Master: Video Software Arkaos GrandVJ 2.0: Video Software
CABLES: Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors) Indoor Power Locking Link Cables Indoor Power Locking Main Power Cables
CERTIFICATIONS: cETLus
