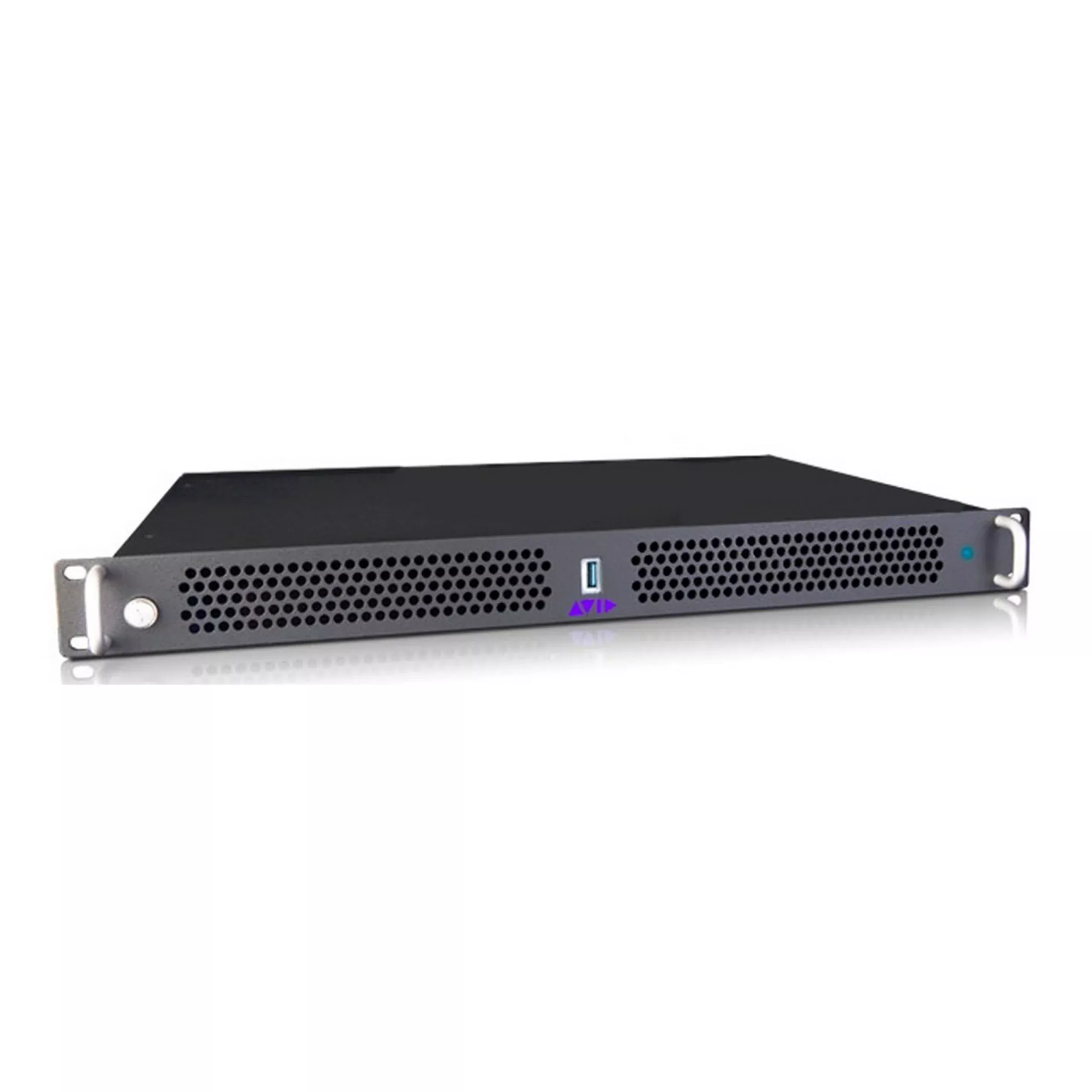

Avid Pro Tools HDX Thunderbolt 3 Rackmountable Chassis

Avid Pro Tools HDX Thunderbolt 3 Rackmountable Chassis

Bring thepower of Pro Tools | HDX to your desktop or studio rack with the Pro Tools |HDX Thunderbolt 3 Chassis, built in partnership with Sonnet. The 1Urack-mountable chassis can house a single HDX PCIe card (not included) and Macmini, providing portability and easy connection to the latest high-performancecomputers. Or get a ready-to-go HDX system in one easy bundle.

Key Features

• Connect HDXthrough Thunderbolt 3
• Therackmount chassis can securely house a Mac mini and HDX card, enabling you toconfigure a powerful yet portable self-contained system. Plus, it can beconverted from rackmount system to desktop, and vice-versa, making it easy tomove HDX from home studio to facility, and from live rig to hotel room.

TechnicalSpecifications

Form factor
Available asa desktop or rackmount chassis; desktop and rackmount conversion accessoriesalso available as options
PCIe connectivity
Oneexpansion slot for a Pro Tools | HDX PCIe card (sold separately)
Thunderbolt connectivity
TwoThunderbolt 3 ports-one for computer connection and one for daisy-chaining upto five additional Thunderbolt/USB devices
USB connectivity
One USB 3.0port on the front panel of the rackmount chassis
Mac mini enclosure
Internalenclosure to secure optional Mac mini with Thunderbolt 3 ports (rackmountchassis only)
Bandwidth
Thunderboltinterface: 40 Gbit/s
PCIeinterface: 2,750 MB/s
Power supply
96W
Operating temperature
32-95 F(0-35 C)
Dimensions (H x W x D)
1U rack
Desktop chassis (with feet)
9.4 x 2.2 x14.5 inches (238 x 57 x 368 mm)
Rackmount chassis (with rack ears andrails)
1.7 x 19 x17.3 inches (44 x 482 x 439 mm)
