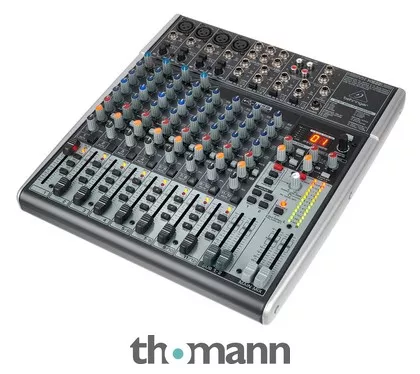

Mixer
- 16 Channels
- 4 Microphone inputs with 48 V phantom power, 75 Hz low cut, compressor, 3-band EQ with parametric mids and insert
- 4 Stereo inputs
- 3-Band EQ, peak LED and mute switch in all channels
- Internal 24-bit multi-effects device with 16 presets
- 2 Subgroups with separate output
- 2 AUX paths (1 pre/post switchable, 1 post)
- 60 mm fader
- 2-Track input and output
- XLR main out
- Built-in USB sound card
- Internal power supply
- Dimensions (H x W x D): 90 x 320 x 340 mm
- Weight 3.45 kg
- 19″ Rack kit included
- Suitable bag: Article no. 481195 (not included)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2010
- Item number243140
- Sales Unit1 piece(s)
- Simultaneous channels 8
- Mic-In 4
- Mono Line-in 4
- Stereo-In 4
- Hi-Z Input 0
- Phantom Power 48 V
- Master Out XLR
- Aux Ways 2
- max. Pre Aux Channels 1
- PC Interface USB-B
- Audio Interface Input 2
- Audio Interface Output 2
- Multitrack-Recording No
- USB/SD Direct Record No
- Rec Out (Analog) Yes
- Low Cut Yes
- Inserts Yes
- Direct Out No
- Parametric Yes
- Compressor Yes
- Panorama Yes
- PFL Yes
- FX Processor 1
- USB Playback No
- Bluetooth Playback No
- Lamp connection No
- Footswitch Switch
- Matrixmixer No
- Bag No
- Zones 0
- 19″ Rackmount Yes
- Width320 mm
- Height90 mm
- Depth340 mm
- Weight4,2 kg
- Parallel usable Channels8
- simultaneously used channels8
- Mic Ins4
- Mono Line Ins4
- Stereo Ins4
- Number of Pre Aux max.1
- Pre Aux max.1
- PC-InterfaceUSB-B
- InsertYes
- Effect Processor1
- USB PlayNo
- Bluetooth PlayNo
- Racklight ConnectorNo
- Lamp ConnectorNo
- Foot switchSwitch
- Foot SwitchSwitch
- RackmountYes
- Case Thomann302932
- Case ThonNo
- HE Units8 U
