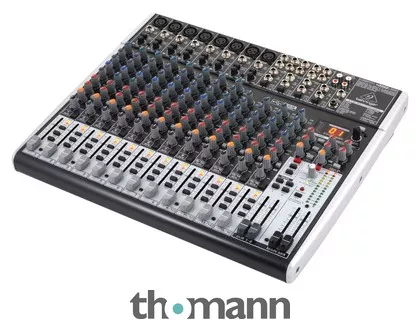

Mixer
- 22 Channels
- 8 Microphone inputs with +48 V phantom power and 75 Hz low cut
- 3-Band EQ with parametric mid-band, compressor and insert on each microphone channel
- 4 Stereo inputs
- 3 Stereo returns
- 3 AUX paths
- Mute switch and peak LED on each channel
- Internal 24-bit multi-effects unit with 16 presets
- 2 Subgroups with separate output
- 60 mm fader
- 2-Track input and output
- XLR main out
- Built-in USB sound card
- Internal power supply
- Dimensions (H x W x D): 90 x 430 x 355 mm
- Weight: 4.78 kg
- 19″ Rack kit included
- Suitable cases: Article no. 268320 and Article no. 267780 (both not included)
- Suitable bag: Article no. 481192 (not included)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2010
- Item number243138
- Sales Unit1 piece(s)
- Simultaneous channels 12
- Mic-In 8
- Mono Line-in 8
- Stereo-In 4
- Hi-Z Input 0
- Phantom Power 48 V
- Master Out XLR
- Aux Ways 3
- max. Pre Aux Channels 2
- PC Interface USB-B
- Audio Interface Input 2
- Audio Interface Output 2
- Multitrack-Recording No
- USB/SD Direct Record No
- Rec Out (Analog) Yes
- Low Cut Yes
- Inserts Yes
- Direct Out No
- Parametric Yes
- Compressor Yes
- Panorama Yes
- PFL Yes
- FX Processor 1
- USB Playback No
- Bluetooth Playback No
- Lamp connection No
- Footswitch Switch
- Matrixmixer No
- Bag No
- Zones 0
- 19″ Rackmount Yes
- Width430 mm
- Height90 mm
- Depth355 mm
- Weight5,1 kg
- Parallel usable Channels12
- simultaneously used channels12
- Mic Ins8
- Mono Line Ins8
- Stereo Ins4
- Number of Pre Aux max.2
- Pre Aux max.2
- PC-InterfaceUSB-B
- InsertYes
- Effect Processor1
- USB PlayNo
- Bluetooth PlayNo
- Lamp ConnectorNo
- Racklight ConnectorNo
- Foot SwitchSwitch
- Foot switchSwitch
- RackmountYes
- Case Thomann267780
- Case ThonNo
- HE Units8 U
