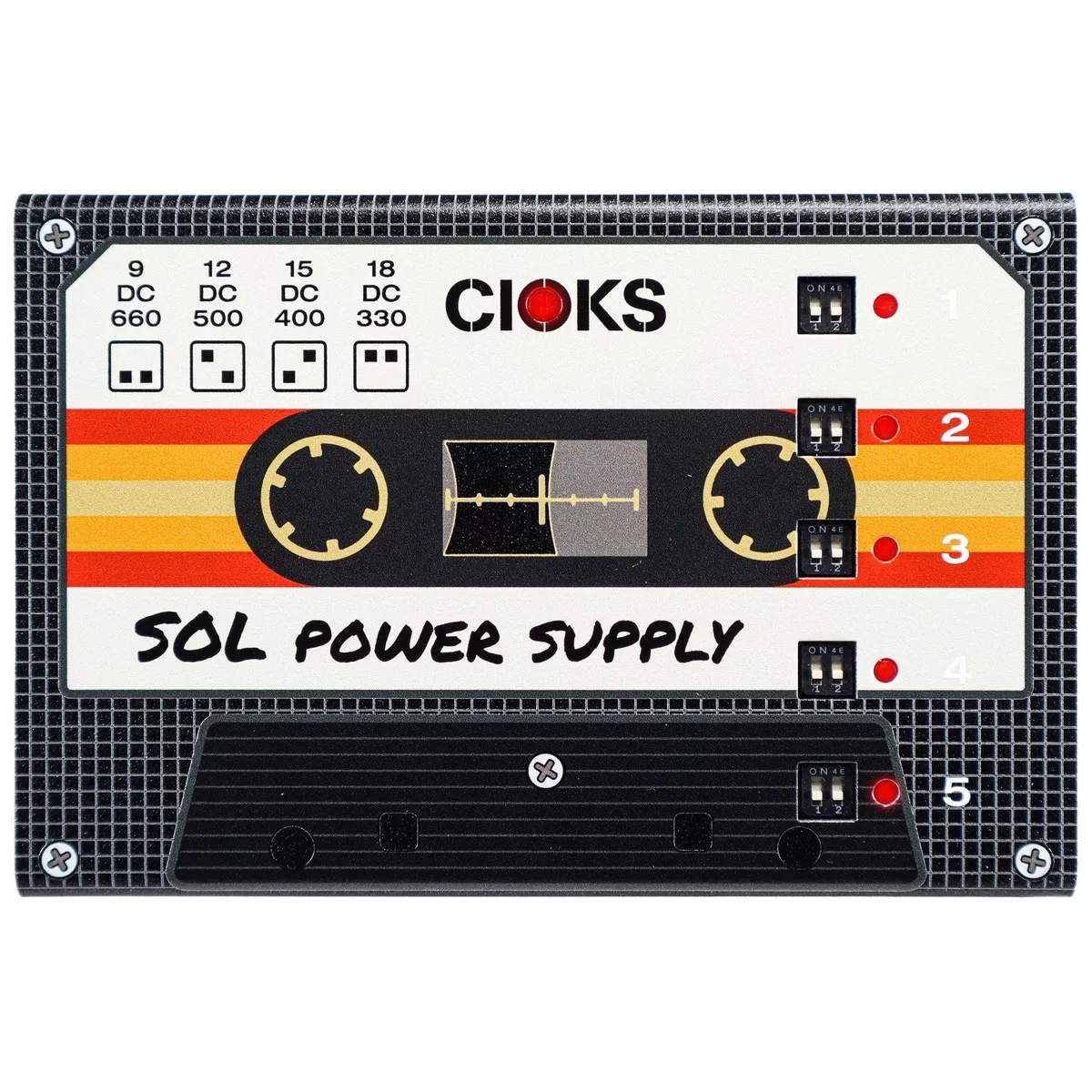

CIOKS SOL Pedal Power Supply – Cassette

CIOKS SOL Pedal Power SupplyCassette

The CIOKS SOL is a compact, high-current pedalboard power supply designed for modern, power-hungry pedals. Featuring five fully isolated outputs with switchable voltages, it delivers reliable, noise-free power in an ultra-slim form factor that fits easily under most pedalboards.

Key Features

• 5 Isolated Outputs: Each outlet delivers up to 660 mA at 9V for demanding pedals.

• Switchable Voltages: Select 9V, 12V, 15V, or 18V per output for broad pedal compatibility.

• High Total Output Power: 30W DC maximum output.

• Ultra-Slim Design: Compact footprint ideal for small to medium pedalboards.

• Worldwide Power Support: 120240V AC input via standard IEC cable.

• Low-Noise Performance: Switch-mode design with fully isolated outputs.

• Pedalboard Mounting Included: Hardware for Pedaltrain and Temple Audio boards.

Included Flex Cables

• 5Standard Flex Type 1 (2.1mm center-negative)

• 1Standard Flex Type 2 (2.1mm center-positive)

• 1Standard Flex Type 4 (2.5mm center-positive)

• 1Split Flex Type 1 (dual output)

• 13-way daisy-chain Flex Type 1

Technical Specifications

• Outputs: 59V / 12V / 15V / 18V DC (330660 mA, voltage dependent)

• Maximum Output Power: 30W DC

• Connectivity: 2.1mm barrel connectors

• Dimensions: 5.2″3.5″1.0″

• Weight: 0.9 lbs

Why CIOKS SOL?

The SOL is ideal for players who need serious current in a small, clean setup. Its high headroom, flexible voltages, and slim profile make it a perfect choice for modern pedalboards packed with digital and analog pedals alike.
