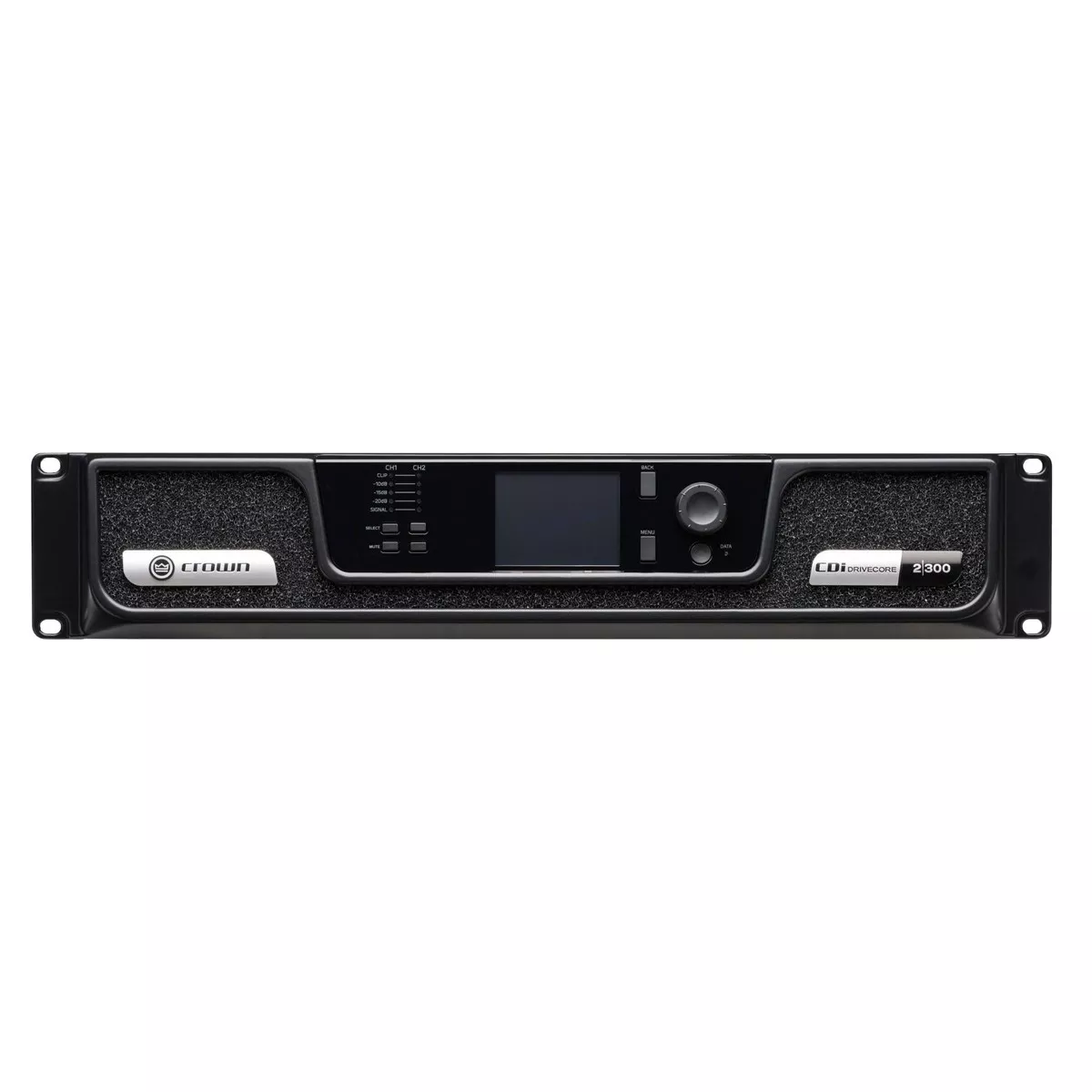

CROWN CDi Drive Core 2/300.
The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|300 offers streamlined functionality to work in almost any small/medium sized installation such as restaurants, retail stores, and more. Designed for ease-of-use in a variety of applications, the 2|300 is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.
Specs:
- BLU link: No
- Channels: 2
- Sensitivity (for full rated power at 8 ohms): 0.7V RMS
- Rated Power Output (per channel @ 4 ohms): 300W
- Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz – 20kHz) at 8 ohms):> 104dB
- THD (full rated power, 20 Hz – 20 kHz): 0.35%
- Damping Factor (20 Hz to 100 Hz):> 1000
- Frequency Response (8, 20 Hz – 20 kHz): +/-0.5dB
- Crosstalk (below rated power): 20 Hz to 1 kHz> 80dB
- Input Impedance (nominally balanced, nominally unbalanced): 20 k balanced, 10 k unblanced
- Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion): 19 x 3.5 x 12.25
- Weight: 14.56 lbs (6.6 kg)
- Power Supply Connector: Standard IEC type 320 inlet for detachable connector 100240V~
