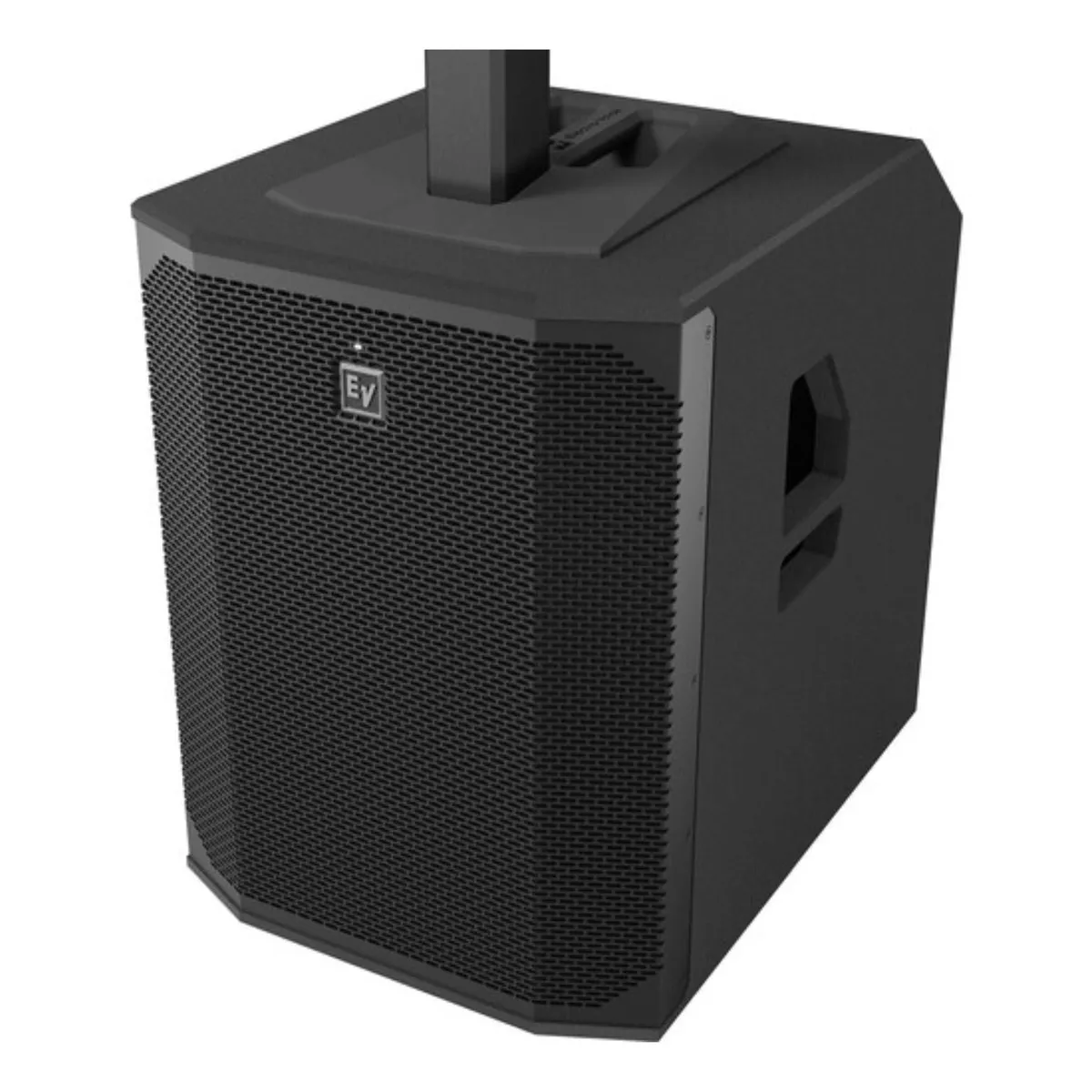

Electro-Voice EVOLVE 70 Powered 15″ Bluetooth-Enabled Subwoofer (Black)
The Electro-Voice EVOLVE 70 subwoofer is designed for larger PA setups, powering the EVOLVE 70 column array with deep, impactful bass. Ideal for bands, DJs, and event professionals, it delivers professional-grade audio in a portable package with rapid setup. Bluetooth-enabled, it integrates with the QuickSmart Mobile app for system control and monitoring.
Key Features
- 15 low-frequency driver with 3 voice coil
- Powers EVOLVE 70 column array
- Bluetooth audio streaming and QuickSmart Mobile App control
- Built-in mixer with mic/line inputs
- Connect two EVOLVE 70 subs via RJ45
- Frequency response: 35 Hz20 kHz
- Maximum SPL: 133 dB
- Lightweight construction and ergonomic design for portability
Specifications
- Frequency Range: 35 Hz (-10 dB) / 40 Hz (-3 dB)
- Maximum SPL: 133 dB
- Total Output Power: 2000 W
- Subwoofer Type: Active for Column Array
- Enclosure: Bass-reflex
- LF Driver: 1x 15″ / 38 cm Woofer, 3″ / 76.2 mm Voice Coil
- Audio Inputs: 2x XLR-1/4″ TRS Combo Mic/Line, 2x XLR-1/4″ TRS Combo Line, 1x Stereo RCA, 1x XLR AES3
- Audio Outputs: 1x XLR Line Thru, 1x XLR Mix Output, 1x XLR Aux/Mix Output
- Network: 1x RJ45 Link
- Wireless: Bluetooth
- App Compatibility: QuickSmart Mobile (iOS & Android)
- AC Input: 100240 V, 50/60 Hz
- Power I/O: 1x powerCON Input
- Color: Black
- Mounting: Column Array Insert (Top)
- Handles: 1x Each Side
- Package Weight: 73.5 lb
- Box Dimensions: 27 x 26 x 20.5″
Included
- EVOLVE 70 Powered 15″ Bluetooth-Enabled Subwoofer
- Power Cord
- Limited 3-Year Manufacturer Warranty
