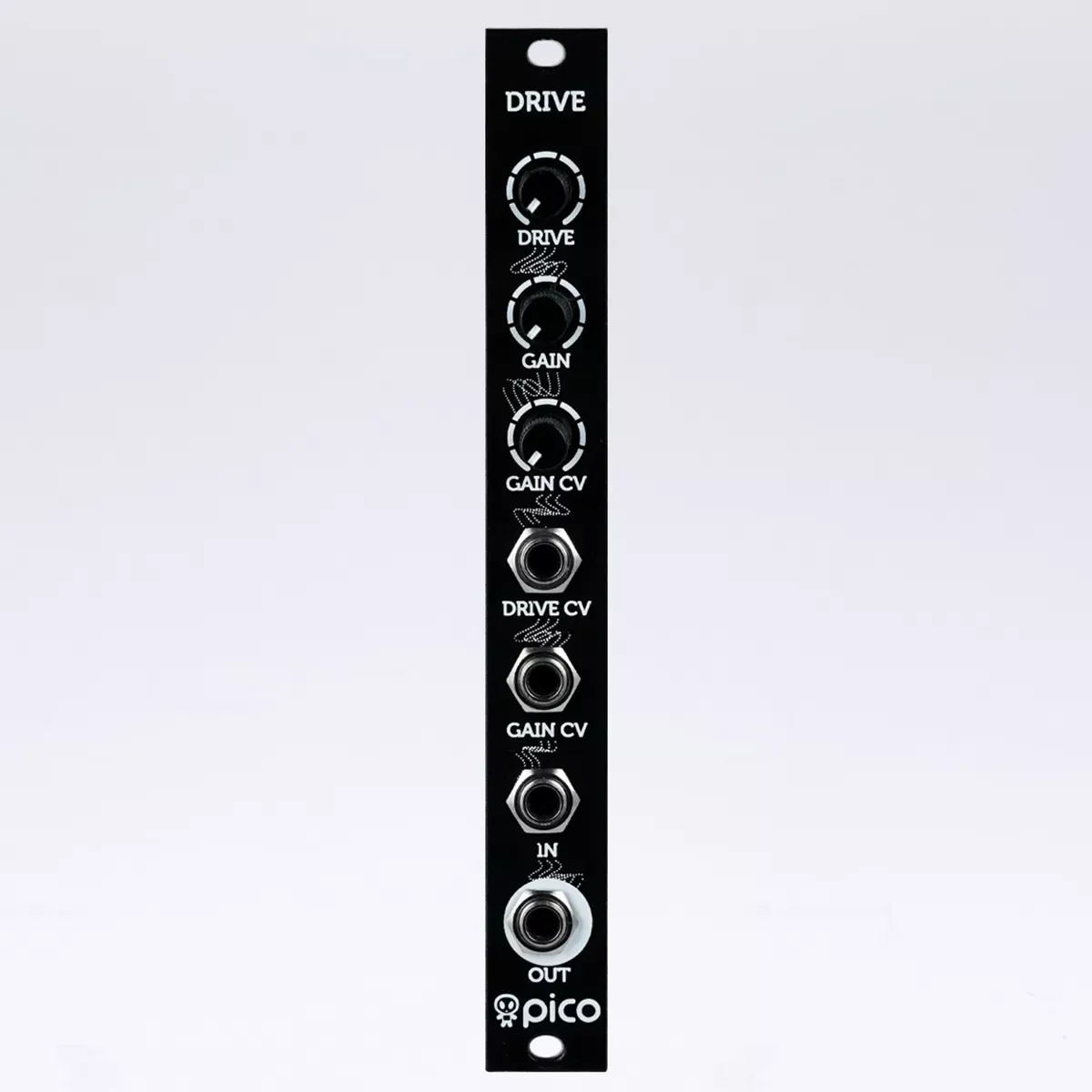

Erica Synths Pico Drive 3HP Wavefolder Overdrive Eurorack Module

Pico Drive

Want some distorted drums or thicken up the final mix but you are short in rack space? Pico Drive is the answer! Pico Drive is combined wavefolder overdrive module that features manually adjustable Gain and Drive level, CV control over Gain and Drive adds more expression, while built in limiter prevents output signal to run into undesired clipping.

Features

• Manual Gain and Drive controls
• CV control over Gain and Drive
• Wavefolder
• Output signal limiter
• Input and output protection against undesired overvoltage

• Audio output level: -5…+5V
• CV level (full span): -5V – +5V
• Power consumption: 29mA @ +12V, 29mA @ -12V
• Module width: 3HP
• Module depth: 35mm
