Description:

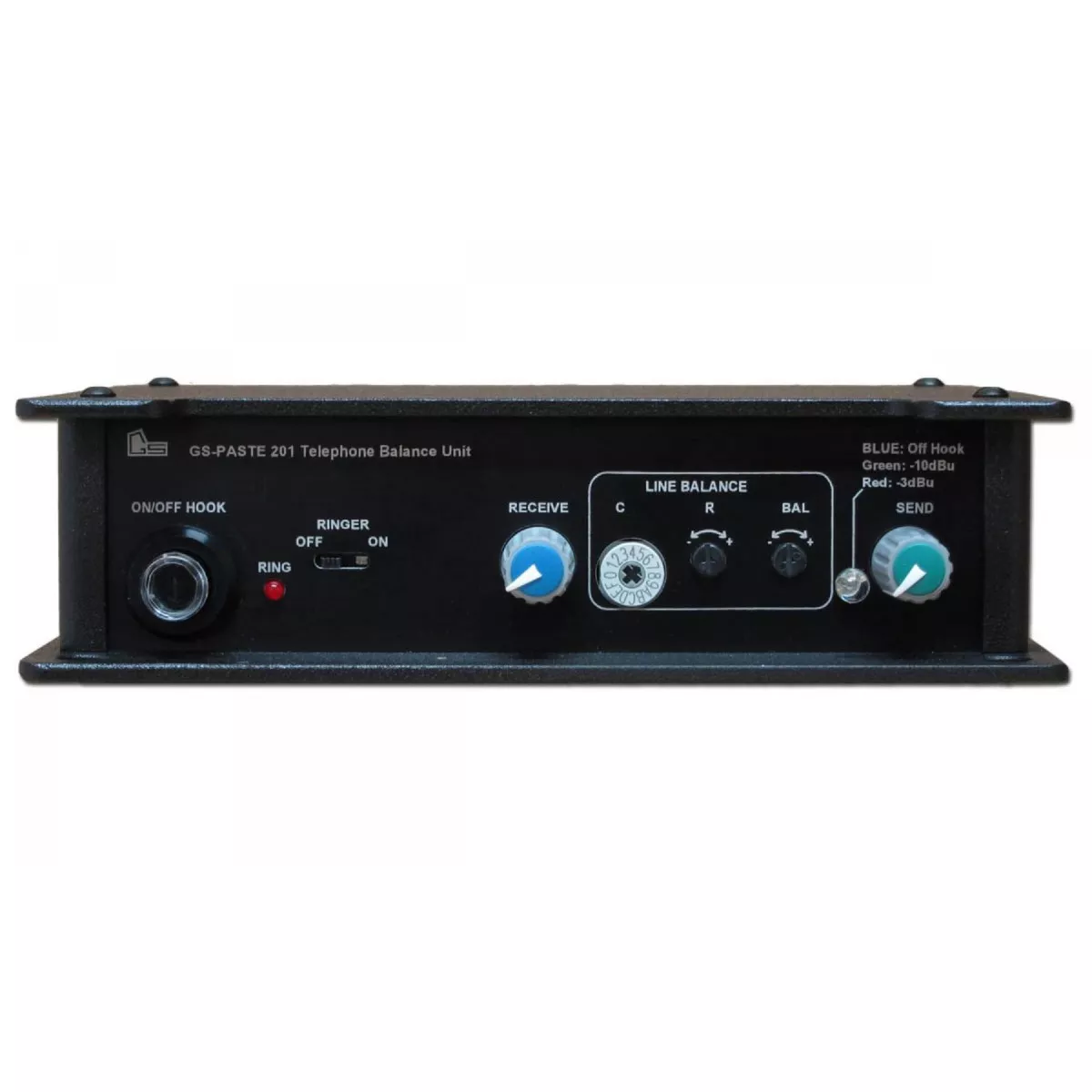

- The GS-PASTE 201 is a line powered, heavy duty analogue telephone balancing unit. It allows professional audio equipment such as mixers, talkback systems or headphone circuits to be connected to a traditional analogue telephone line.
- A tone generator has been included to help with line balancing. Once a line is connected the tone can be switched on, so that the R and C can be balanced accordingly. Instructions for this are printed on the side of the unit. Once the best balance is achieved, the tone can be turned off.
- A front panel LED indicates an incoming call. There is also an audible ringer which can be turned off if required.
- A 19 inch rack mount version is also available.
- Inputs: Audio input is line level on a balanced Neutrik XLR. Input level control. Multi coloured LED indicates level sent to the line
- Outputs: Audio output on balance Neutrik XLR. Output level control
- Telco Connections:There is an RJ-11 connector for external handset to allow dialling of outgoing calls. An On/Off Hook switch (with indicator) allows answering of calls when an external telephone is not connected.
- There is also an RJ-11 connector for connection to a normal telephone line. A recessed switch switches RJ-11 telephone line pairs (there are 2 different standards used Worldwide), for worldwide compatibility.
- Dimensions: Maximum Dimensions (excluding belt clip): 153 mm x 103 mm x 45mm
- Weight 415g
- Tested & complies with ETSI ES203021
- 1U Rackmount Option
- The GS-PASTE201 is now available as a 1U 19″ rackmount. The rack can hold up to two PASTE201 modules.
- GS-PASTE201/R1 – 1 x GS-PASTE201
- GS-PASTE201/R2 – 2 x GS-PASTE201
Features:
- Provides balanced audio input and output from a normal POTS (Plain Old Telephone System) line
- No batteries or mains required
- Input compressor (prevents overloading of telephone line)
- R/C & line balance controls
- Internal tone generator for line balancing
Specs:
- AUDIO INPUT:
- Transformer balanced on neutrik XLR
- Input impedance ……>10k
- Nominal input level: 0dBu
- Front panel gain control: +/- 10dB
- Maximum input level: +18dBu
- Compressor/ Limiter: Internal efficient compressor/ limiter for controlling levels to the line
- AUDIO LEVEL INDICATION:
- Large front panel tri colour LED:
- BLUE = Off hook and level <-10dBu
- GREEN = level>-10dBu <-3dBu
- RED = level>-3dBu
- AUDIO OUTPUT:
- Transformer balanced on neutrik XLR
- Output impedance……50 Ohms
- Nominal output level: 0dBu
- MAXIMUM output level typically +6dBu (limitation is level of audio on telephone line)
- Front Panel gain control: +/-10dB
- TELEPHONE LINE:
- LINE TYPE: Direct Exchange Line (DEL) (standard analogue line used worldwide)
- Line Connector: RJ14 6P6C (RJ11 6P2C compatible)
- CONNECTOR PINOUT: Can be switched between PINS 2/5 and 3/4 (provides Worldwide compatibility)
- PINOUT SWITCH: Rear panel recessed
