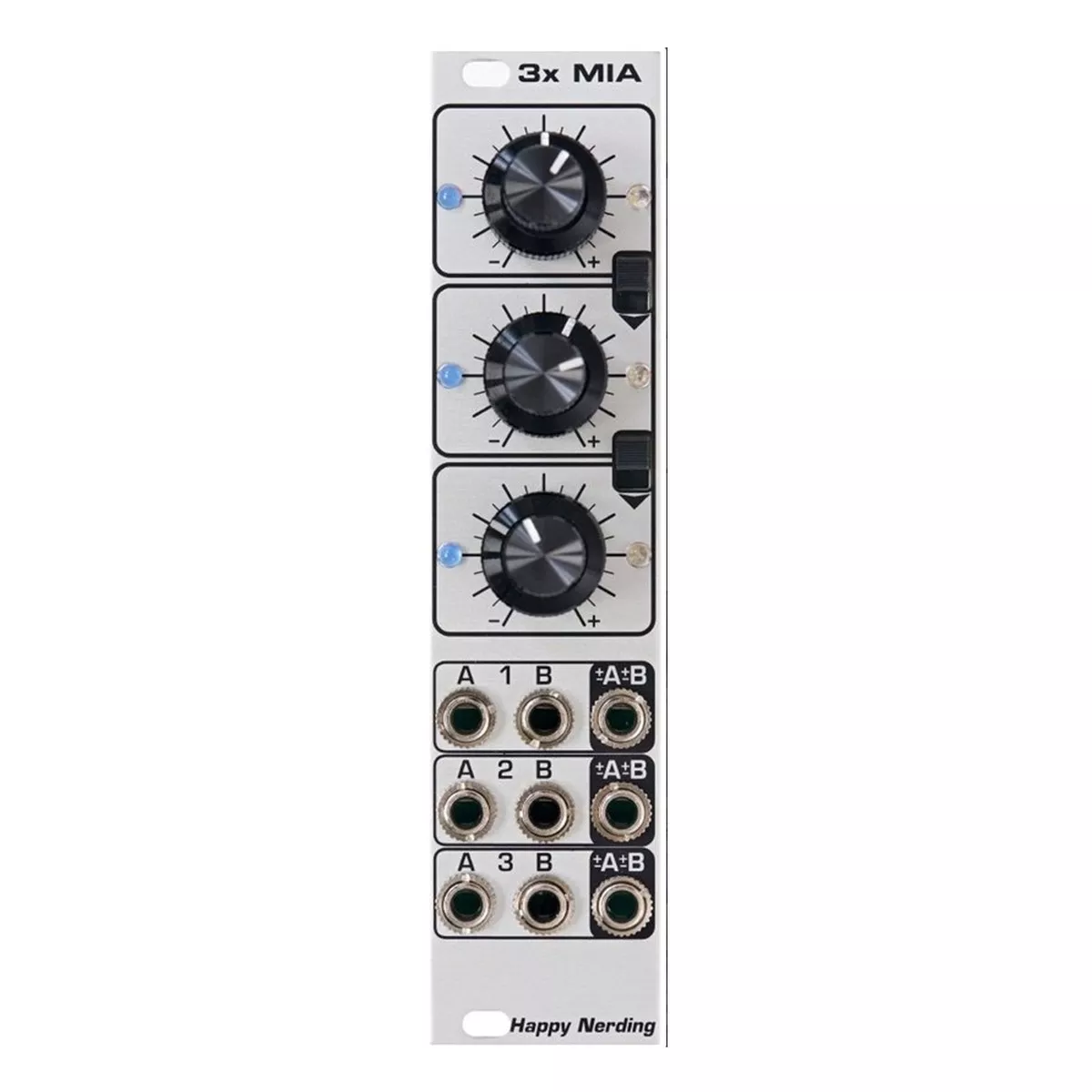

3xMIAis a 6-channel attenuverting mixer/offset/scale/polarizer
3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.
With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.
DC coupled, so it can be used for audio, CV, or both at the same time.
- 80 mA +12V
- 80 mA -12V
- 35 mm Depth
- 6 HP wide
