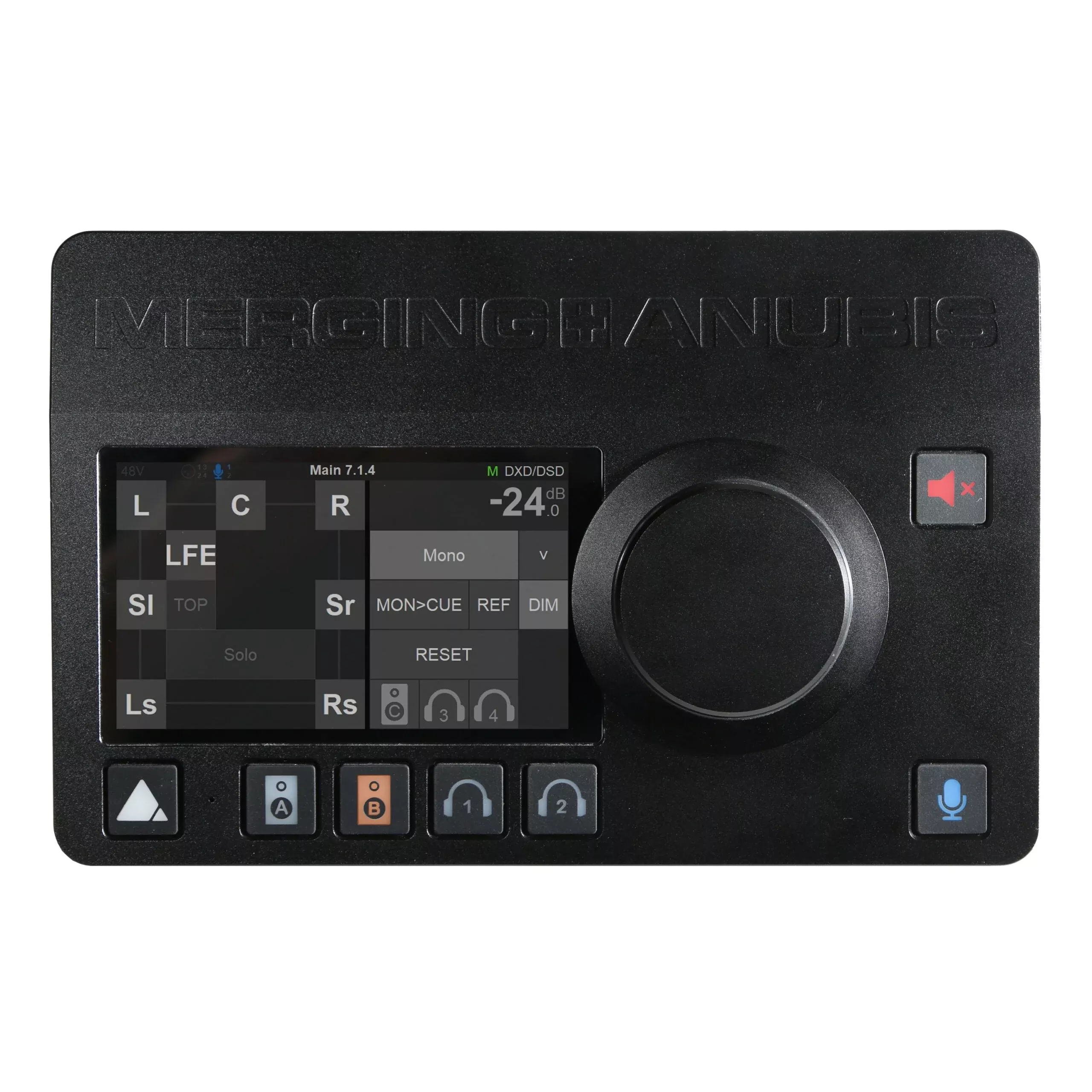

Merging Technologies Anubis Premium SPS Audio Interface Network Converter
Anubis can be used standalone or simultaneously with a DAWfor front-end signal processing combined with the Music Mission DSP engine forultra-low latency monitoring and/or tracking. Big mixer with astonishing performancewith all the sends, cues, snapshots and effects you need for single homerecording or for multiple performers recording sessions. Connect your MIDIkeyboard, record you instruments, balance your low latency mix, make yourperformers cues use your favorite effects chains and route them in the Anubismixer. No color and fully transparent PreAmps with astonishing A/D performance anda dynamic range of 139dB with gain scale from 0 to 78dB (boost). Our pristineD/A technology ensures that you hear what your recording, mixes and masteringdeserves.
Technical Specifications
Case Material
Premium machined and anodized aluminum
Dimensions
200 x 128 x 40mm
Weight
950 g
Top Panel Display
Capacitive Touch, TFT LCD 800 x 480 pixels resolution
16:9 Aspect ratio
Rotary Encoder
Anodized aluminum + Black rubber O-ring
7 x Hardware + Softbuttons
RGB LEDs
Bottom Panel Micstand thread
3/8” 16BSW European thread incorporated
Note: Americas 5/8” 27UN adaptor not included
SOFTWARE
Windows Driver/OS
Windows 7 64bit / Windows 8.1 64bit: RAVENNA ASIO v12.0(ASIO 2.2)
Windows 10 64bit: MAD v2.0 (Merging Audio Device)
Mac Driver/OS
VAD Core Audio for macOS 10.8.5 or higher (Intel & M1)
Linux Driver/OS
ALSA Linux driver for RAVENNA/AES67
ANEMAN
Version 1.1.7 and above
MICROPHONE INPUTS 1-2(COMBO)
Connector Type
Combo Locking Neutrik XLR / TRS
Dynamic Range Mic /Mic Boost
137 dB / 128 dB (A-weighted, typ.)
Max Input level MicPad / Mic / Mic Boost
+24 dBu / +12 dBu / +0 dBu
Frequency response+0/-0.2dB @ fs = 48 kHz
9 Hz – 22 kHz
Frequency response+0/-3dB @ fs = 96 kHz
9 Hz – 46 kHz
Frequency response+0/-3dB @ fs = 192 kHz
11 Hz – 94 kHz
THD+N Preamp + A/D1kHz @ 0 dBFS
<-110 dB (0.0003%)
InterchannelCrosstalk @ 1kHz
<-130 dB
Equivalent InputNoise Mic / Mic Boost (150 OHMS Source)
<-125 dBu / -128 dBu (A-weighted, typ.)
Common Mode RejectionRate (20 Hz – 20 kHz)
> 80 dB
Input Impedance(Differential)
~ 10k OHMS
Gain Range (Softwarecontrolled)
0 dB to +66 dB
Gain Step Coarse /Fine
0.5 dB / 0.1 dB
Phantom Power(Software Switchable Per Channel)
+48V
Phase Reverse(Software Switchable Per Channel)
Yes
Low Cut filter(Software Switchable Per Channel)
-12 dB/octave, 80 Hz
5 low-end in-channeldeviation pt: Mic
9 Hz
Interchannel phase 10Hz – 100 kHz
<-2
LINE INPUTS 1-2(COMBO)
Connector Type
Combo Locking Neutrik XLR / TRS
Dynamic Range, ref+24 dBu
139 dB (A-weighted, typ.)
Max Line Input Level
+24 dBu
Input Impedance(Differential)
~ 10k OHMS
THD+N Preamp + A/D1kHz @ 0 dBFS
<- 104 dB (0.0006%)
InterchannelCrosstalk @ 1kHz
<-140 dB
Sensitivity Range for0 dBFS (Software controlled)
+24 dBu to -42 dBu
Common Mode RejectionRate (20 Hz – 20 kHz)
> 80 dB
5 low-end in-channeldeviation pt: Line
9 Hz
Interchannel phase 10Hz – 100 kHz
<-2
INSTRUMENTS / HI-Z& LINE INPUTS 3-4
Connector Type
1/4” TRS Female
Dynamic Range, ref+18 dBu
136 dB (A-weighted, typ.)
Max Input Level
+18 dBu
Input Impedance(Single ended / Differential)
~ 1M OHMS / ~ 2M OHMS
Gain Range (Softwarecontrolled)
0 dB to +66 dB
THD+N Preamp + A/D1kHz @ 0 dBFS
<- 111 dB (0.0003%)
InterchannelCrosstalk @ 1kHz
<-150 dB
Sensitivity Range for0 dBFS (software controlled)
+18 dBu to -48 dBu
Common Mode RejectionRate (20 Hz – 20 kHz)
> 70 dB
5 low-end in-channeldeviation pt: Inst/Line
2 Hz
Interchannel phase 10Hz – 100 kHz
<-1
MAIN OUTPUTS 1-2
Connector Type
Neutrik XLR Male
Dynamic Range
123 dB (A-weighted, typ.)
Max output Level(Differential / Single ended)
+24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms)
Frequency response+0/-0.2dB @ fs = 48 kHz
6 Hz – 22 kHz
Frequency response+0/-3dB @ fs = 96 kHz
2 Hz – 46 kHz
Frequency response+0/-3dB @ fs = 192 kHz
2 Hz – 92 kHz
Output Impedance
<70 OHMS
THD+N 1 kHz @ 0 dBFS
<- 110 dB (0.0003%)
Output Level Matching
-0.01 dB
Attenuation Range(Software controlled)
-dB to 0 dB
Gain Step / Precision
0.5 dB / -0.05 dB
LINE OUTPUTS 3-4
Connector Type
1/4” TRS Female
Dynamic Range
123 dB (A-weighted, typ.)
Max output Level(Differential / Single ended)
+24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms)
Output Impedance
<70 OHMS
THD+N 1 kHz @ 0 dBFS
<- 110 dB (0.0003%)
Output Level Matching
-0.01 dB
Attenuation Range(Software controlled)
-dB to 0 dB
Gain Step / Precision
0.5 dB / -0.05 dB
HEADPHONES
Headphone Jacks
2 Independent ” TRS Female Stereo 6.3 mm
Dynamic Range(A-weighted, typ.) High / Low
<-122 dB / – 117 dB
Max output Level High/ Low
17.1 dBu / 7.8 dBu
Frequency response+0/-0.2dB @ fs = 48 kHz
6 Hz – 22 kHz
Frequency response+0/-3dB @ fs = 96 kHz
2 Hz – 46 kHz
Frequency response+0/-3dB @ fs = 192 kHz
2 Hz – 92 kHz
Output Impedance
<0.035 OHMS
THD+N 1 kHz @ 0 dBFSHigh / Low
<-108 dB (0.00039%) / -110 dB (0.0003%)
Attenuation Range(Software controlled)
-dB to 0 dB
Gain Step / Precision
0.5 dB / -0.05 dB
A/D – D/A CONVERSION
Supported SampleRates PRO
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
Supported SampleRates PREMIUM
44.1 kHz up to 352.8 kHz (DXD), 384 kHz, DSD64, DSD128 &DSD256
Bit Depth Per Sample
32
A/D Latency SharpShort delay @ 44.1kHz to 96kHz
5 samples
A/D Latency SharpShort delay @ 174.6kHz to 192kHz
6 samples
A/D Latency SharpShort delay @ 352.8kHz to 384kHz
7 samples
D/A Latency Sharp @44.1kHz to 384kHz
35 samples
D/A Latency Slow @44.1kHz to 384kHz
9 samples
D/A Latency Apodizing@ 44.1kHz to 384kHz
35 samples
D/A Latency Brickwall@ 44.1kHz to 384kHz
35 samples
COMPLEMENTARY I/O
RAVENNA/AES67(Gigabit Ethernet)
Locking EtherCON compatible with standard RJ45 connectors
Built-in Talkbackmicrophone
Mono omnidirectional condenser capsule
GPI/MIDI Input
1/4” TRS Female
GPO/MIDI Output
1/4” TRS Female
