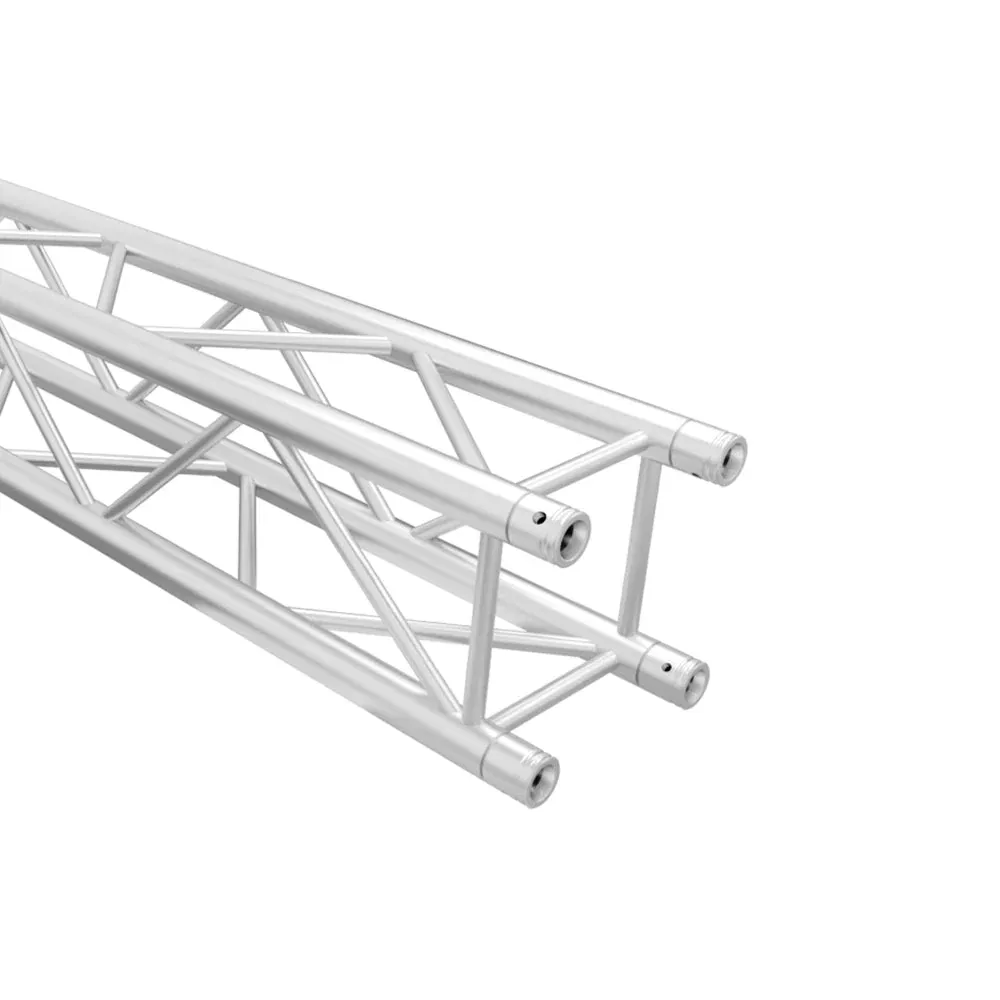

PRODJ-SQ-4110-75: 2.46 ft (0.75m) F34 11.42 in Square Box Truss Straight Segment
F34 Square Truss: 11.42″ Box Truss. Engineered and manufactured to conform to the standards required to receive the TÜV SÜD stamp, our line of products offers truss solutions for all applications.
Specifications
- 2.46ft / 0.75m Overall Length
- 11 7/16″ (290mm) Overall Width
- 2″ (50mm) Outer Diameter Tubing
- 3/4″ (20mm) Diagonal Bracing
- 0.08″ (2mm) Wall Thickness
- 6.36 kgs / 14 Lbs
Series Specifications
EXTERNAL DIMENSION: 290mm; TUBES: 50x2mm; BRACES: 20x2mm; MATERIAL: EN-AW 6082 T6. Connecting hardware is included with each truss.
Resources
- F34 LOAD SPAN TABLES: F34 Truss Load Span Tables PRODJ California Stamp.pdf
- PRODJ-SQ-4110-75 DIMENSIONAL DRAWING: F34-PRODJ-SQ-4110-75.pdf
- CAD_FILE: PRODJ-SQ-4110-75.dwg
