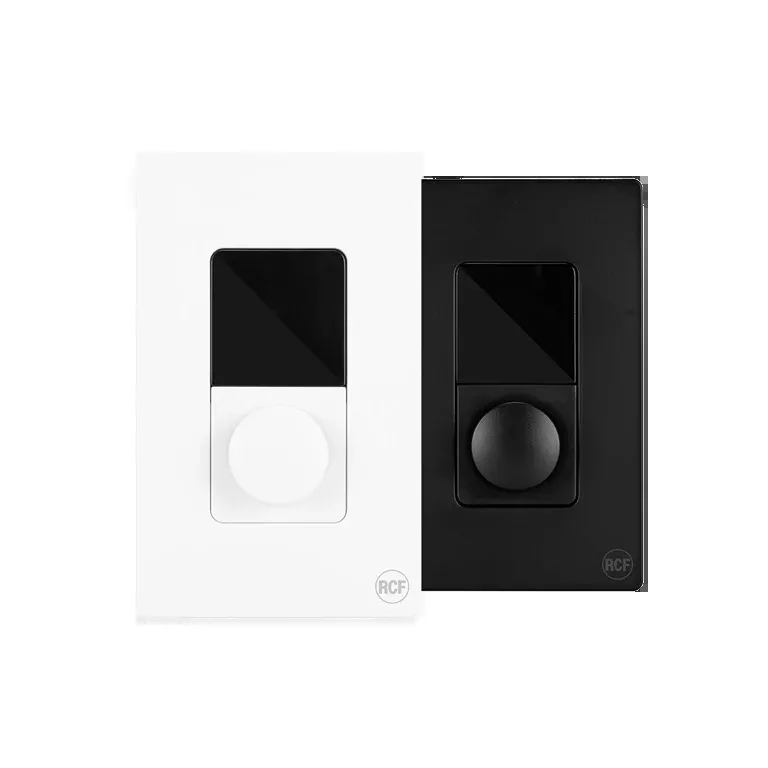

RC KPS US Wall Mount Remote Control
RC KPS is a wall-mounted control unit that allows you to operate KPS series amplifiers by adjusting zone volumes and selecting the corresponding sources. Featuring a discreet and elegant design, it suits all installation environments and is available in both white and black versions. The user interface consists of a practical rotary knob and a 1.1” color display with a resolution of 240×240 pixels. The color scheme can be changed to perfectly match the installation setting. Configuration is very simple and intuitive, and is carried out via the RDSpace software. Up to 8 control units can be connected to the same amplifier, while power is supplied via PoE.
Features
- Multi-zone remote control
- Compatible with all KPS series amplifiers
- Colour display (240×240 px)
- PoE power supply
- Volume control
- Source selection
- Standby management
- Available in white RAL 9003 and black RAL 9005
Specifications
General specifications
| Functions | Volume control Mute Source selection Stand-by |
| Installation | Compatible with US installation standard |
| Work with | KPS series amplifiers |
| Number of connectable item | Up to 8 controllers for each amplifier |
| Connector | RJ45 |
| Max cable length (CAT 5e) | 100 m |
| Power supply | PoE Class I device, 48V |
| Power consumption | 3.84Wmax |
Standard compliance
| IP protection grade | IP 30 |
| Safety agency | CE compliant |
Physical specifications
| Cabinet/Case Material | Plastic |
| Color | Black – RAL 9005, White – RAL 9003 |
Size / Weight
| Height | 115.1 mm / 4.53 inches |
| Width | 70.6 mm / 2.78 inches |
| Depth | 42.8 mm / 1.69 inches |
| Recessed Depth | 23.1 mm / 0.91 inches |
| Weight | 0.12 kg / 0.26 lbs |
Shipping information
| Package Height | 70 mm / 2.76 inches |
| Package Width | 150 mm / 5.91 inches |
| Package Depth | 125 mm / 4.92 inches |
| Package Weight | 0.26 kg / 0.57 lbs |
