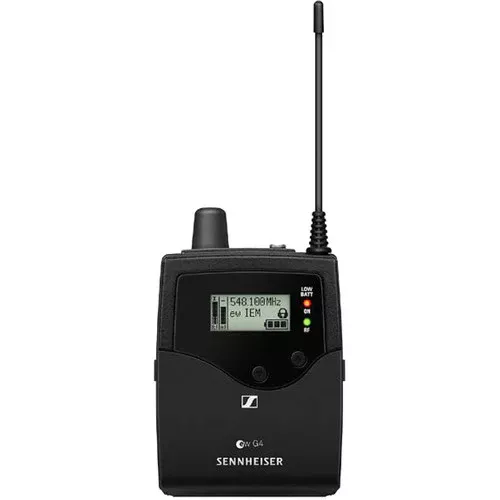

Overview of Sennheiser EK IEM G4-G
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
Features:
- Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for flexible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 50 mW) depending on country regulations
Specifications:
- Frequency range
- Dimensions: Approx. 82 x 64 x 24 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ≤ 0.9 %
- Weight: (incl. batteries) approx. 125 g
- Signal-to-noise ratio: approx. 90 dBA
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: approx. 4 to 6 hours (depending on volume level)
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: approx. 140 mAwith transmitter switched off: ≤ 25 µA
- Adjacent channel rejection: Typically ≥ 65 dB
- Audio-Output-Power: 2 x 100 mW at 32 Ω
- Intermodulation attenuation: Typically ≥ 70 dB
- Limiter: –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
- Powering: 3 V battery / 2.4 V rechargeable battery
- Receiving frequency: Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
- RF sensitivity: <4 μV, typ. 1.6 μV for 52 dBA rms S/N
- Squelch: 5 to 25 dBµV, adjustable in steps of 2 dB
- Bass Boost: +8 dB at 80 kHz
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: Adaptive diversity
- Blocking: ≥ 80 dB
- What’s in the Box:
- EK IEM G4 stereo receiver
- 2 AA batteries
- IE 4 earphones
- quick guide
- safety guide
- manufacturer declaration sheet
