Overview of Sennheiser MAT 133-S B

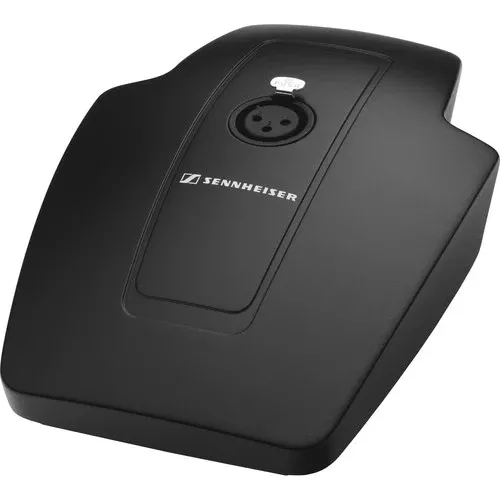

The MAT 133-S is a sturdy, wired table stand that provides a stable base for XLR-3 gooseneck microphones. It has a user-friendly microphone button with a two-color status display that provides quick visual feedback on whether the microphone is active or muted. The TTL logic output on the underside can be used to activate a camera or media control system. The model is available in black color.
The rugged housing of the functionally and unobtrusively designed MAT 133-S provides a solid ground for XLR-3 gooseneck microphones. A convenient microphone button is featured with a bi color light ring for clear visual feedback. The TTL-logic output serves for various control purposes such as camera control. The MAT 133-S is as versatile to install as it is to operate.
The table stand MAT 133 is compatible with MEG 14-40-L.
Features:
- Solid Microphone Stand
- Timeless design
- Bi-colored light ring for clear visual feedback
- Logical function for easy control of e.g. cameras
- Toggle on/off
- Push to mute
- Push to talk
- permanent on (external LED control)
Specifications:
- Color: black, nextel grey, LED light ring: red / green
- Dimensions: 120 x 170 x 43 mm (BTH / WDH)
- Connector: Mic in: XLR-3F
- Connector: Mic out: XLR-3M
- Connector: Logic: clip contact for logic, Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal)
- Weight: 1210 g
- Phantom powering: P 24 – P 48
- Operating temperature: -10° – +50°C
- Current consumption: 3.7 mA
- Output voltage: Logic out: high level output voltage> 2.4 V, low level output voltage <0.4 V
- Output voltage: Logic in: high level input voltage> 2.0 V, low level input voltage <0.8 V
- What’s in the box:
- MAT 133-S table stand
- Quickguide
