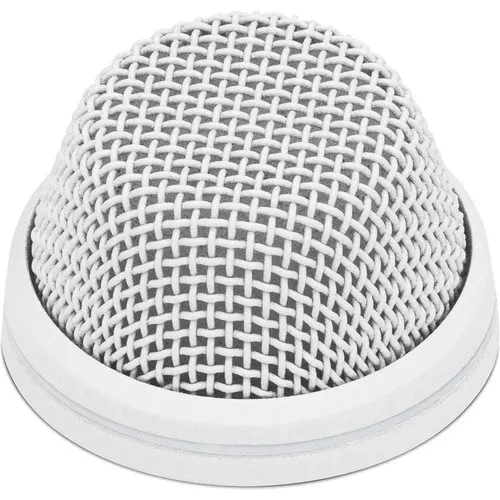

Sennheiser MEB 104 W

Overview of Sennheiser MEB 104 W

Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 104 (cardioid) fits any style of interior and can be easily installed into surfaces such as tables or ceiling tiles. It features a proven Sennheiser microphone capsule for the best speech intelligibility, and is protected by a rugged housing. Its -L variant features a bi-color LED ring for status indication.

Specifications:

• Connector: MEB 104: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = −
• Current consumption: MEB 104: 3 mA
• Color: white
• Dimensions: Height: 90 mm (19 mm above surface), Diameter:28.5 mm
• Frequency response: 40 Hz – 20 kHz
• Max. sound pressure level: 125 dB
• Transducer principle: pre-polarized condenser microphone
• Weight: 60 g
• Pick-up pattern: cardioid
• Nominal impedance: 200 Ω
• Phantom powering: P 24 – P 48
• Operating temperature: 0 ° – +40 °C
• Equivalent noise level: 28 dB (A)
• Equivalent noise level weighted as per CCIR 468-3: 38 dB (CCIR)
• Acoustics: Boundary Layer Microphone
• Dynamic range: 97 dB (A)
• Sensitivity: 14 mV/Pa
• Thread: M 20
• What’s in the box:
  • MEB 104
  • Quickguide
  • Mounting material
