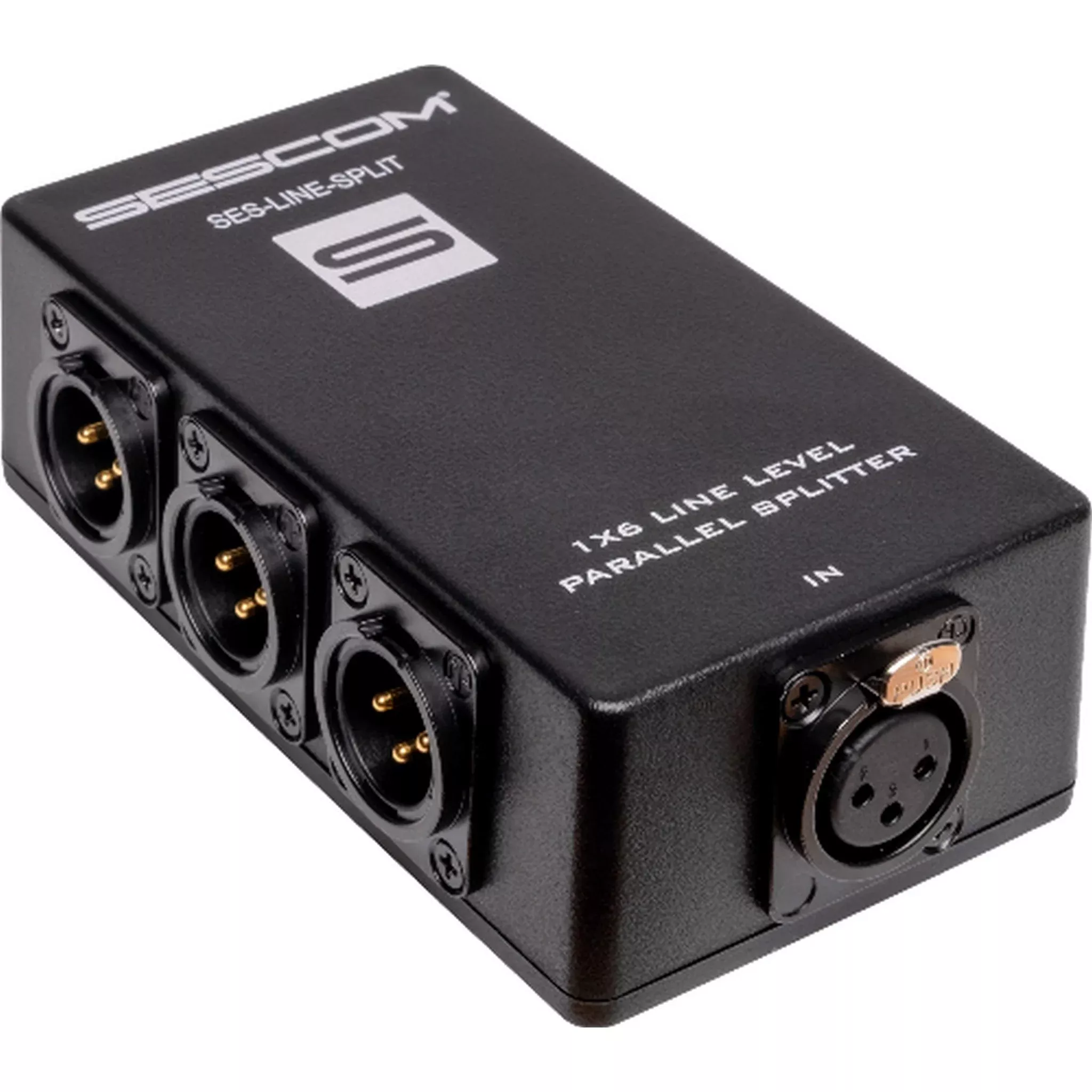

Sescom SES-LINE-SPLIT Passive Line-Level XLR Splitter

Sescom SES-LINE-SPLIT Passive Line-Level XLR Splitter

The Sescom SES-LINE-SPLIT is a passive audio distribution device designed to split a single line-level XLR input into six independent line-level outputs. It is engineered for clean signal distribution with no signal degradation in professional audio environments.

This passive splitter delivers excellent channel-to-channel isolation, low distortion, superior common-mode rejection, and minimal crosstalk. High-quality Neutrik locking XLR connectors ensure secure connections for studio, broadcast, installation, and live sound applications.

Housed in a lightweight and durable ABS plastic enclosure, the SES-LINE-SPLIT requires no external power for operation. It is well suited for fixed installations and mobile rigs where reliable line-level signal distribution is required.

Key Features

• 1×6 signal distribution: Splits one line-level XLR input into six independent outputs
• Passive operation: No power supply, batteries, or AC required
• High isolation: Excellent channel-to-channel isolation and minimal crosstalk
• Professional connectors: Neutrik locking 3-pin XLR connectors
• Low distortion design: Maintains clean line-level audio signals
• Durable enclosure: Lightweight ABS plastic housing for professional use

Technical Specifications

• Input: 1 XLR
• Outputs: 6 XLR
• Connector type: Neutrik 3-pin XLR
• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 5 mΩ
• Dielectric strength: 1.5 kV DC
• Connector lifetime:> 1000 mating cycles
• Locking device: Latch lock
• Enclosure material: ABS plastic
