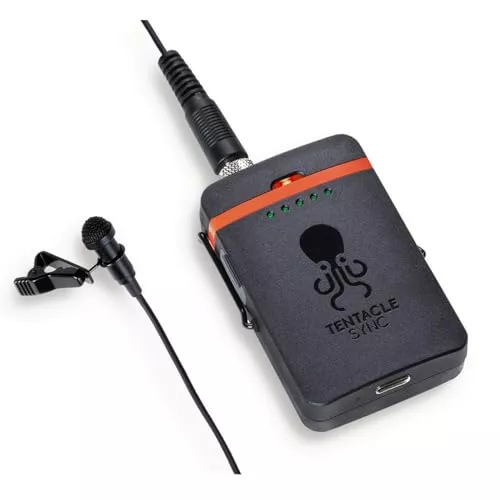

Tentacle Sync Track E Timecode Audio Recorder
The TRACK ETimecode Audio Recorder is nearly as small as the Timecode Sync Generator SYNCE, so it can easily fit in your pocket for recording on the go. This allowsmobile operation for example as a recorder for a clip-on microphone eliminatingthe need for a radio-link. It offers timecode synchronization over Bluetoothbased on the well established Tentacle Sync technology. This means that theTRACK E will work in environments where regular wireless transmitter fail.
Controllablethrough the Setup App for iOS or Android, It’seamless integrates into the SYNCE synchronization network by the push of a button via Bluetooth. But the TRACKE does not necessarily need a SYNC E device to operate – it can easily functionas a stand-alone device and can be jam-synced via cable.
In additionto the ability to record with 24-bit depth, TRACK E also features 32-bitfloating point technology for a significantly extended dynamic range. 32 bitfloating point also means that no digital clipping will occur, making the TRACKE a versatile set-&-forget-device that will always deliver high qualityaudio. With the TRACK E users can treat audio in a similar way as photographersuse the RAW camera photo format – all details can be adjusted in postproduction, significantly reducing the preparation time before you startshooting.
The TRACK Euses a changeable SDcard for recording the audio. An input limiter and ahigh-pass filter guarantee for pristine recording quality. A screwable minijack connector offers maximum security for connecting microphones. The TRACK Efeatures plugin power for supporting a wide range of microphones. A free licenseof Tentacle Sync Studio (Mac) is included with every TRACK E purchase.
Key Features
- 32-bit FloatRecording / 24-Bit Recording
- ControlMultiple Devices via Bluetooth (iOS & Android)
- WirelessTimecode Sync (Bluetooth) / Jam-Sync via Cable
- Up to 10hours Operating Time
- GeneralPurpose Lavalier Microphone with Clip and Windjammer included
- 16GB microSDCard included
- 2 YearLimited Warranty
- Designed andManufactured in Germany
Technical Specifications
Number of Tracks
1
Sampling Rate
48 kHz
Recording Bit-Depth
32-bit Float/ 24-bit
Recording File Formats
WAV (BWF)
Recording Time
30hrs(24-bit) / 23hrs (32-bit Float) with 16GB Card
Storage Media
microSDHCCard up to 32GB (Recommended Class 10)
Signal Processing
Low CutFilter, Limiter (24-bit only)
Microphone Input
3.5mm Jack (screwlock)
Mic Plug-In Power
5 V(switchable)
Headphone Output*
3.5mm Jack
USB Connection
USB-C (USB2.0)
USB Modes
Charging,Card Reader, Firmware Update
Frequency Response
20Hz – 20kHz
Gain Range
+6 to +46dB
Dynamic Range
110dB typ
THD+N
<= -85 dB(0,05%)
Bluetooth
5.0
Remote Control
TentacleSetup App (iOS/Android)
Synchronization
ViaBluetooth (Tentacle Setup App) or Jam-Sync via Cable
Timecode Input
LTC via MicIn
Timecode Output
N/A
Frame Rates
SMPTE 12M / 23.98,24, 25, 29.97, 29.97DF, 30
Power Source
Built-inrechargeable Lithium Polymer Battery
Battery Capacity
900 mAh
Battery Operation Time
approx. 10Hours
Battery Charging Time
max. 2 Hours
Mounting
Belt Clip(removable) – Black Powder-Coated Stainless Steel
Weight
58 g / 2.1oz
Dimensions
47 x 68 x 19mm / 1.85 x 2.67 x 0.74 inches
WHAT’S IN THE BOX?
1x TentacleSync TRACK E – Timecode Audio Recorder
1x GeneralPurpose Lavalier Microphone with 3.5mmLockable Connector
MicrophoneClip
Windjammer(black)
Zipper Bagsmall
1x 16GBmicroSD Card
1x USB-A toUSB-C Cable
1x USB-C toUSB-C Cable
1x Belt Clipmade of Powder-Coated Stainless Steel in Black
1x ZipperBag medium
5x ColouredSilicone Bands
1x SoftwareLicense for Tentacle Sync Studio(macOS)
